About Us

We are committed to achieve customer...

Rudraksh Technocast Is one of the premier foundries in India, Located in Rajkot-Gujarat, producing high quality S.G.Iron (NODULAR CAST Iron OR DUCTILE Iron) castingfor customer around the world. We are equipped with State-of-Art Technology, Melting Shop, Mobile shop, Core Shop, Fettling & Grinding facility and Chemical plus Physical labroratory to cast and test components with stringent merallurgical and quality requirements. We are engage is S.G.I. Casting production business since 2005 and it has motivated us to extend our foundry business skills and expertise in S.G. Iron.

Our annual production capicity is 1200 MT. We have a capicity to cast a single component weight range from 1 Lbs (0.454 kg) to 660 Lbs (330 kg).

Quality Of Rudraksh

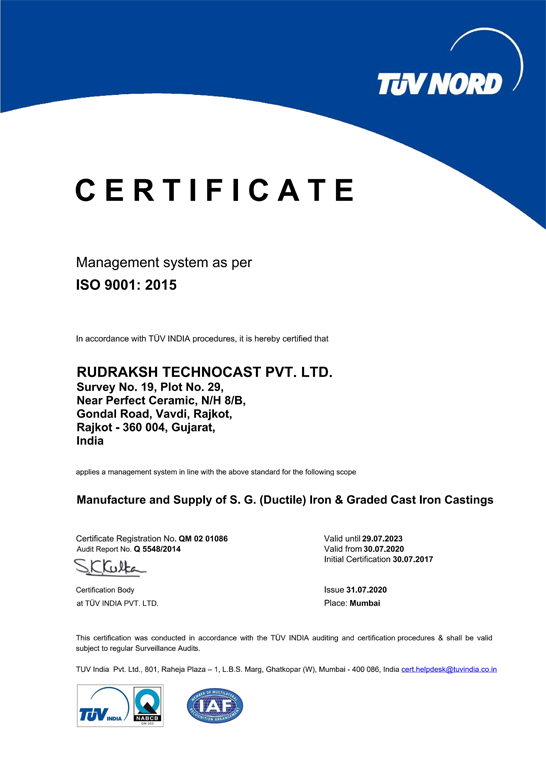

Quality Certification

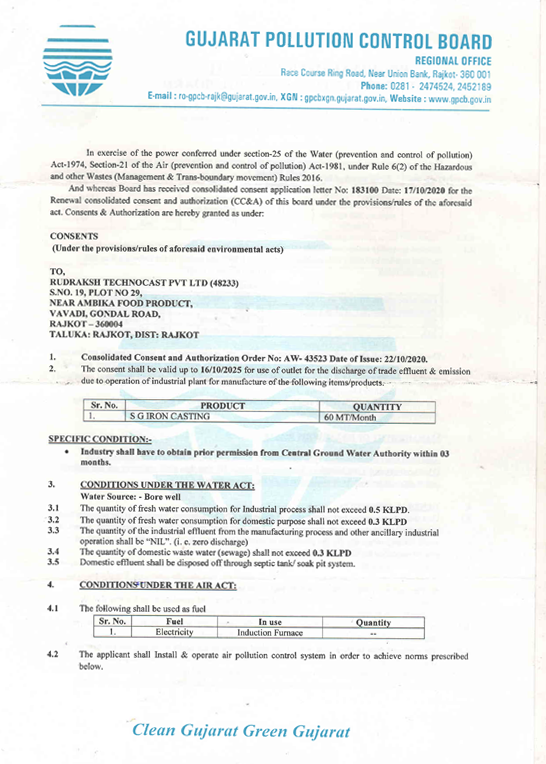

G.P.C.B. Certification

About Ductile Iron

Nodular iron or Spherical. We take away as much as possible and innoculate with a MG Alloy. This causes graphite to form in spherical clumps instead of flakes. This has a tremendous effect on mechanical properties.
Yield : 276 MPA, 40Ksi.
Ultimate : 414MPA, 60Ksi
Ductile : 18% EL
1. Please Note : Elements such as copper or tin may be added to increase tensile and yield strength while simulataneously reducing ductile. Improved corrosion resistance can be achieved by replacing 15% to 30% of the iron in the alloy with varying amounts of nickel, copper or chromium
This is very important - has steel like properties in a casting

Ductile Iron Material Grades

Country	Standard	Equivalent Grades of Ductile iron (SG Iron, Nodular Graphite Iron)
ISO	ISO 1083	400-15 400-18	450-10	500-7	600-3	700-2	800-2	900-2
China	GB 1348	QT400-18	QT450-10	QT600-3	QT700-2	QT800-2	QT900-2	—
USA	ASTM A536	60-40-18	60-42-10 65-45-12	70-50-05	80-55-06 80-60-03	100-70-03	120-90-02	—
Germany Austria	DIN 1693	GGG40	—	GGG60	GGG70	GGG80	—	—
European	EN 1563	EN-GJS-400-15 EN-GJS-400-18	EN-GJS-450-10	EN-GJS-500-7	EN-GJS-600-3	EN-GJS-700-2	EN-GJS-800-2	EN-GJS-900-2
Japan	JIS G5502	FCD400	FCD450	FCD600	FCD700	FCD800	—	—
Italy	UNI 4544	GS370-17	GS400-12	GS600-2	GS700-2	GS800-2	—	—
France	NF A32-201	FGS370-17	FGS400-12	FGS600-2	FGS700-2	FGS800-2	—	—
UK	BS 2789	400/17	420/12	600/7	700/2	800/2	900/2	—
India	IS 1865	SG370/17	SG400/12	SG600/3	SG700/2	SG800/2	—	—
Spain	UNF	FGE38-17	FGE42-12	FGE60-2	FGE70-2	FGE80-2	—	—
Belgium	NBN 830-02	FNG38-17	FNG42-12	FNG60-2	FNG70-2	FNG80-2	—	—
Australia	AS 1831	300-17 400-12	—	500-7	600-3	700-2	800-2	—
Sweden	SS 14 07	0717-02	—	0732-03	0737-01	0864-03	—	—
Norway	NS11 301	SJK-400.3 SJK-400	—	SJK-500	SJK-600	SJK-700	SJK-800

Gray Iron Material Grades

Country	Standard	Equivalent Grades of Grey Iron (Gray Cast Iron)
ISO	ISO 185	100	150	200	250	300	350	-
China	GB 9439	HT100	HT150	HT200	HT250	HT300	HT350	-
USA	ASTM A48	-	NO.20 NO.25	NO.30	NO.35	NO.40 NO.45	NO.50	NO.55 NO.60
Germany Austria	DIN 1691	GG10	GG15	GG20	GG25	GG30	GG35	GG40
European	EN 1561	EN-GJL-100	EN-GJL-150	EN-GJL-200	EN-GJL-250	EN-GJL-300	EN-GJL-350
Japan	JIS G5501	FC100	FC150	FC200	FC250	FC300	FC350	-
Italy	UNI 5007	G10	G15	G20	G25	G30	G35	-
France	NF A32-101	-	FGL150	FGL200	FGL250	FGL300	FGL350	FGL400
UK	BS 1452	100	150	200	250	300	350	-
India	IS 210	-	FG150	FG200	FG260	FG300	FG350	FG400
Spain	UNF	-	FG15	FG20	FG25	FG30	FG35	-
Belgium	NBN 830-01	FGG10	FGG15	FGG20	FGG25	FGG30	FGG35	FGG40
Australia	AS 1830	-	T150	T220	T260	T300	T350	T400
Sweden	SS 14 01	O110	O115	O120	O125	O130	O135	O140
Norway	NS11 100	SJG100	SJG150	SJG200	SJG250	SJG300	SJG350	-
Min. Tensile Strength (Mpa)	100	150	200	250	300	350	-

IS - 1865-1991

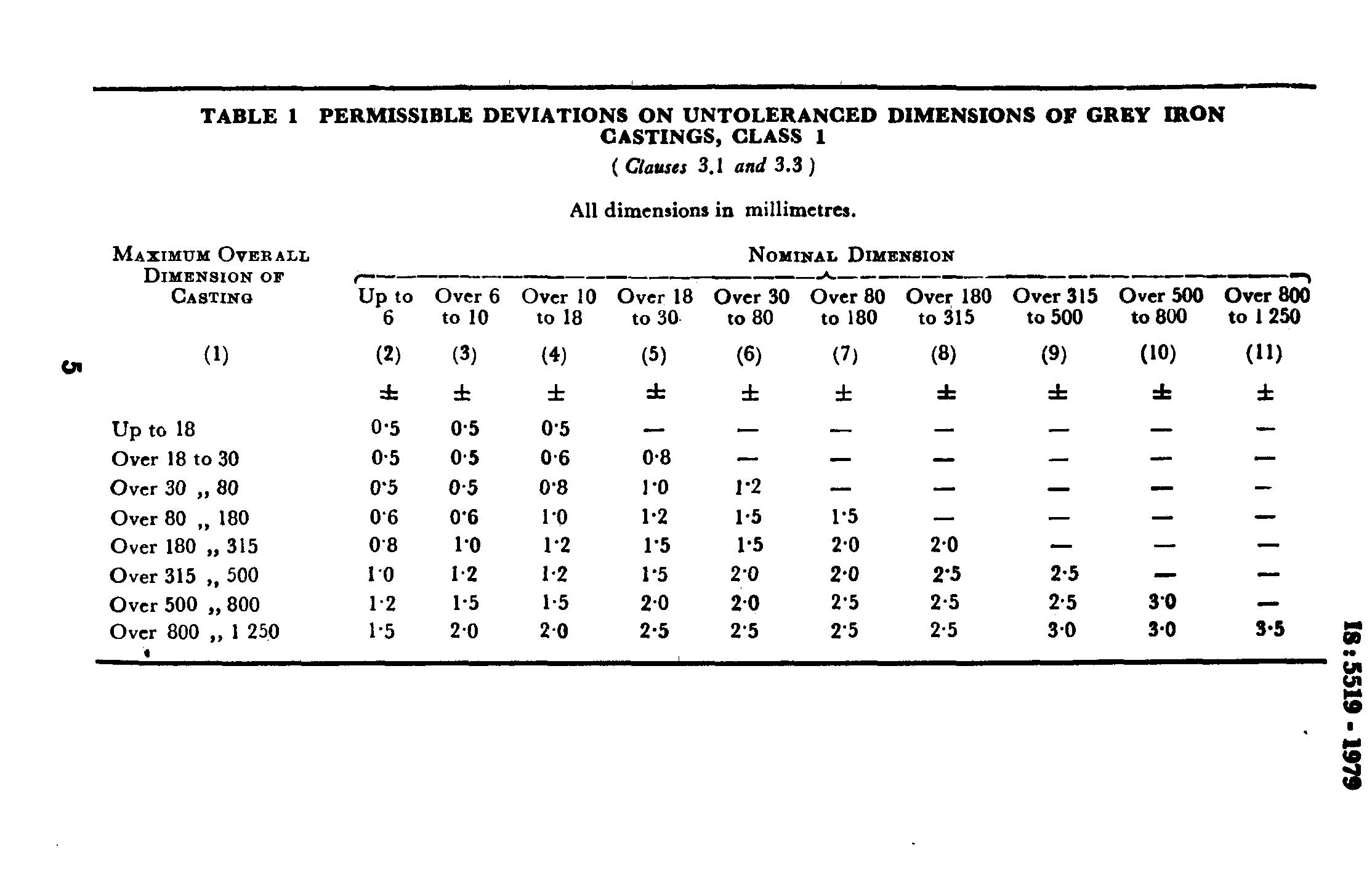

Permissible Devitions On Untoleranced Dimensions Of Grey Iron Castings, Class I

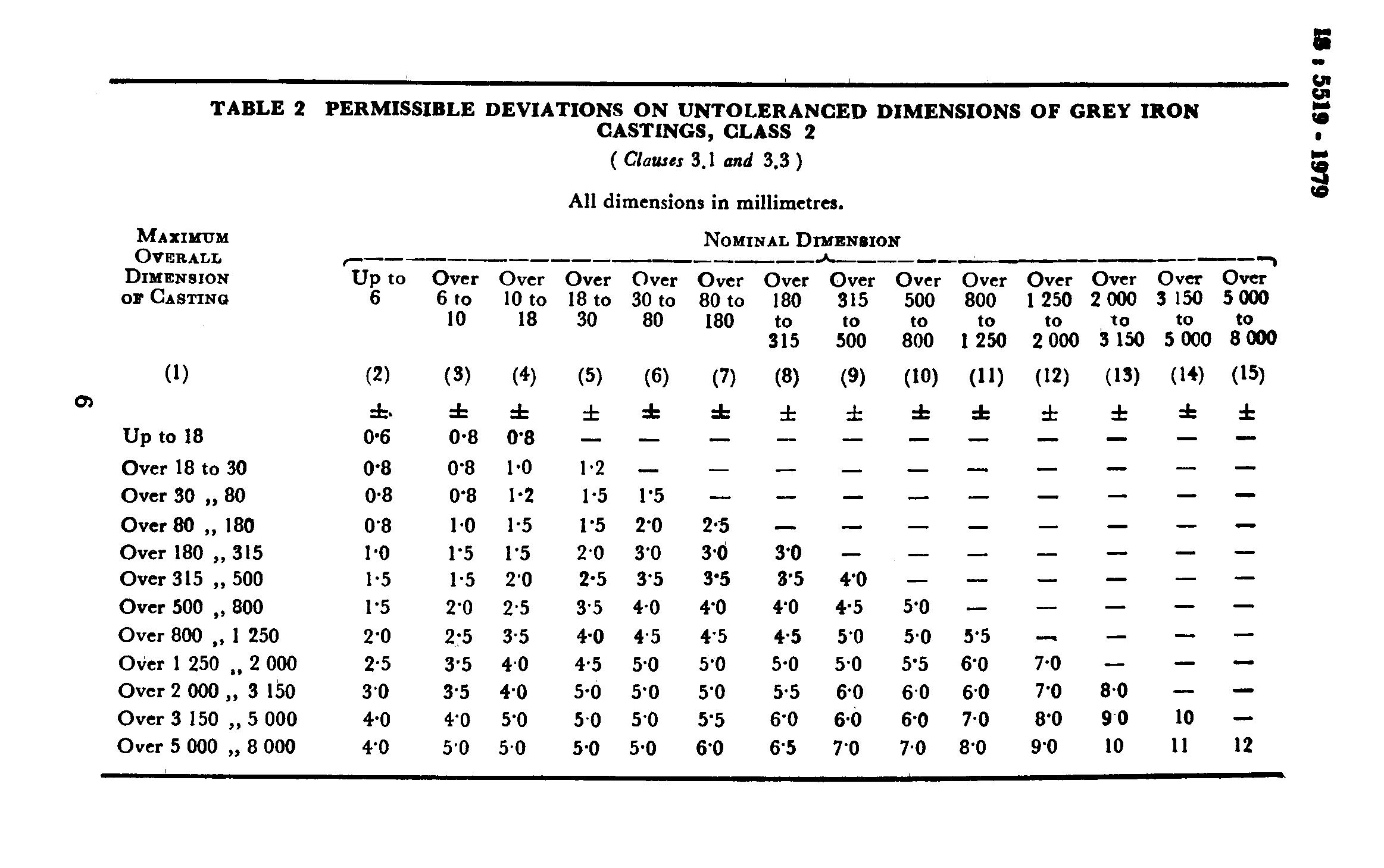

Permissible Devitions On Untoleranced Dimensions Of Grey Iron Castings, Class II

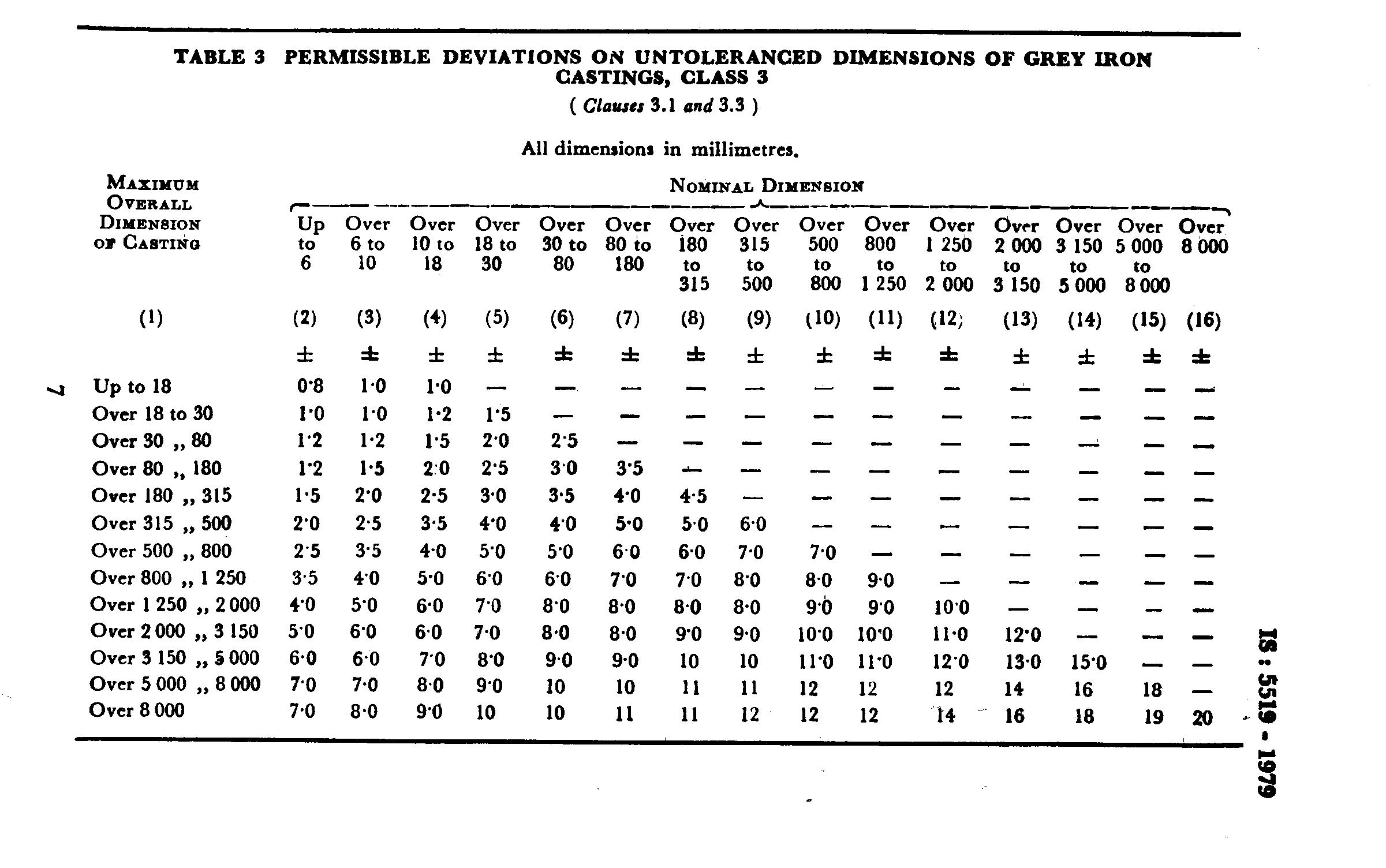

Permissible Devitions On Untoleranced Dimensions Of Grey Iron Castings, Class III
